Inversor híbrido monofásico 6kW Deye SG05LP1 fotovoltaico acumulación litio
SUN-6K-SG05LP1-EU-AM2-PLUS
880,88 €
Impuestos incluidos
10 %
800,80 € Vat excl.
El inversor híbrido Deye es apto para uso residencial y comercial, ya que maximiza el autoconsumo solar y aumenta la independencia energética.
TC incluido en el paquete.

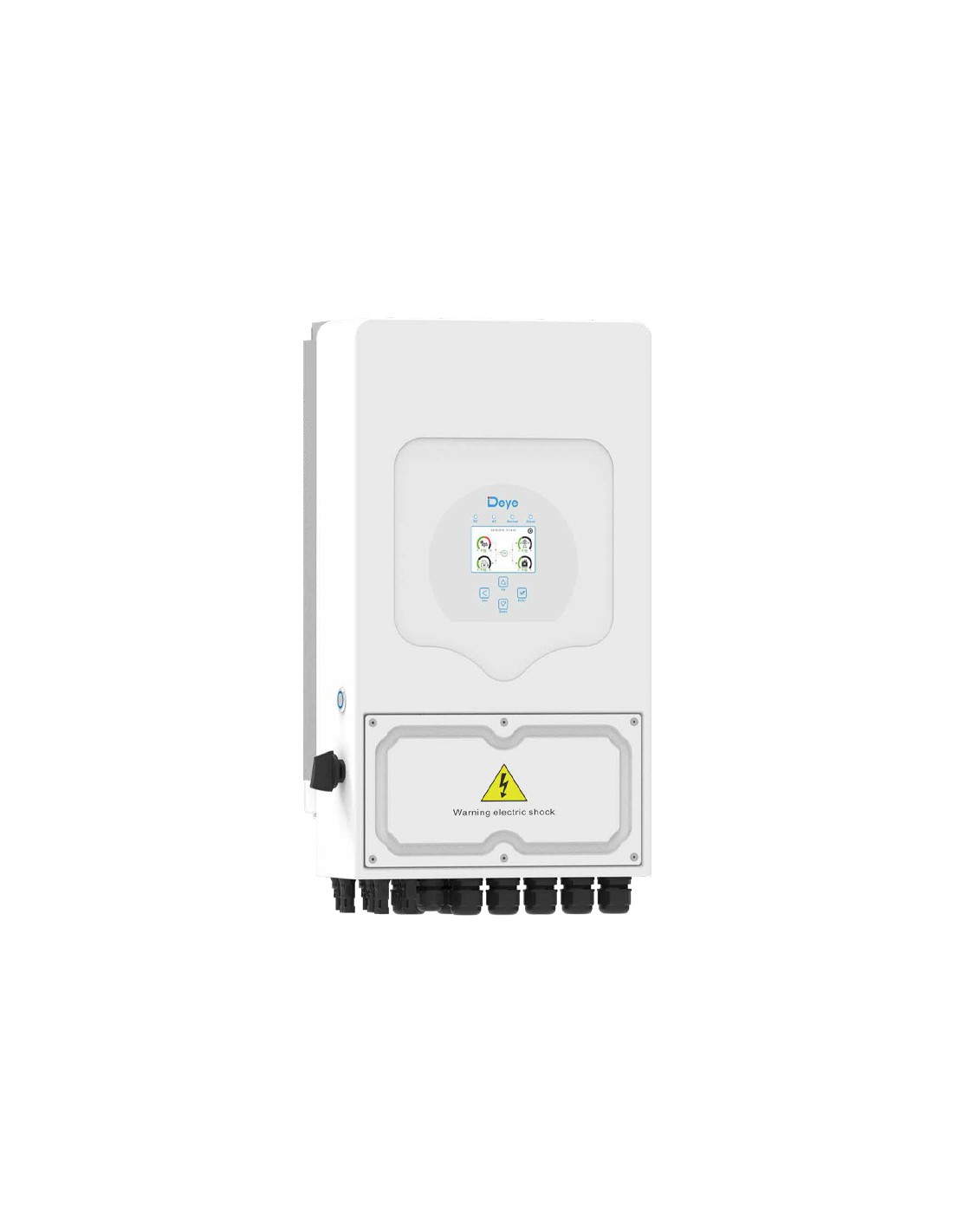

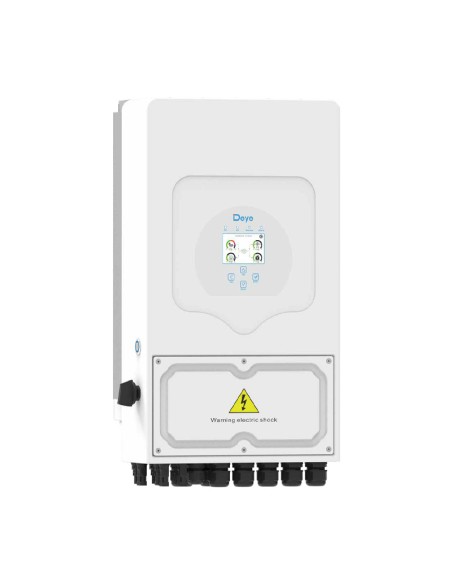

Inversor híbrido monofásico 6kW Deye SG05LP1
El inversor híbrido Deye es adecuado para uso residencial y comercial, maximiza la tasa de autoconsumo de energía solar y aumenta la independencia energética. Durante el día, el sistema fotovoltaico genera electricidad que inicialmente se suministra a las cargas; el excedente de energía se utiliza para cargar la batería.
TC incluido en el paquete.
Características del inversor
- Pantalla táctil LCD a color, grado de protección IP65;
- Acoplador de CA para la modernización de sistemas solares existentes;
- Máximo de 16 módulos en paralelo para funcionamiento conectado a la red y fuera de la red;
- Admite múltiples baterías en paralelo;
- Corriente máxima de carga/descarga de 135A;
- 6 intervalos de tiempo para la carga/descarga de la batería;
- Admite almacenamiento de energía desde un motor diésel generador.
Características técnicas
| Battery Input Data | |||
| Model | SUN-6K-SG05LP1-EU-AM2-PLUS | ||
| Battery Type | Lead-Acid or Lithium-Ion | ||
| Battery Voltage Range (V) | 40-60 V | ||
| Maximum Charging Current (A) | 135 A | ||
| Maximum Discharge Current (A) | 135 A | ||
| Charging Strategy for Lithium-ion Batteries | Self-Adaptation to the BMS | ||
| PV String Input Data | |||
| Maximum DC Input Power (W) | 9600 W | ||
| PV Input Voltage (V) | 500 V | ||
| MPPT Range (V) | 150-425 V | ||
| Nominal PV Input Voltage | 370 V | ||
| Startup Voltage (V) | 125 V | ||
| Maximum input current in PV mode (A) | 18A+18A | ||
| Maximum input short-circuit current (A) | 27A+27A | ||
| Number of MPPT trackers | 2 | ||
| Number of strings per MPPT tracker | 1+1 | ||
| AC Input/Output Ratings | |||
| Rated AC Input/Output Active Power (W) | 6000W | ||
| Maximum AC Input/Output Apparent Power (VA) | 6600W | ||
| Peak Power (Off-Grid) | 2 times rated power, 10 S | ||
| Rated AC Input/Output Current (A) | 27.3/26.1 A | ||
| Maximum AC input/output current (A) | 30/28.7 A | ||
| Maximum continuous AC current (from mains to load) (A) | 40A | ||
| Power factor adjustment range | 0.8 leading - 0.8 lagging | ||
| Output frequency and voltage | 50/45-55, 60/55-65 Hz | ||
| Total harmonic distortion of the current THDi | <3% (of nominal power) | ||
| Efficiency | |||
| Maximum Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| MPPT efficiency | > 99% | ||
| Protection | |||
| DC Reverse Polarity Protection | Integrated | ||
| AC Output Overcurrent Protection | Integrated | ||
| Thermal Protection | Integrated | ||
| AC Output Overvoltage Protection | Integrated | ||
| AC Output Short Circuit Protection | Integrated | ||
| Component Monitoring DC | Integrated | ||
| Arc Fault Circuit Interrupter (optional) | Integrated | ||
| Anti-Islanding Protection, DC Switch | Integrated | ||
| Insulation Impedance Detection | Integrated | ||
| Residual Current Detection | Integrated | ||
| Surge Protection Level | TYPE II (DC), TYPE II (CA) | ||
| Certifications and Standards | |||
| Adjusting the grid | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 | ||
| Safety standard/electromagnetic compatibility | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| General data | |||
| Operating temperature range (℃) | From -40 to +60℃, > 45℃ Derating | ||
| Cooling | Intelligent Cooling | ||
| Noise (dB) | < 45 | ||
| Communication with BMS | RS485/RS232/CAN | ||
| Weight (kg) | 24.9 | ||
| Dimensions (mm) | 330×580×232 (excluding connectors and brackets) | ||
| Protection rating | IP65 | ||
| Installation style | Wall-mount wall | ||
| Warranty | 5/10 years | ||
- MPPT number
- 2
- Tipología
- Monofásico
- Potencia del inversor
- 6.0kW
- Fabricante inversor
- Deye
