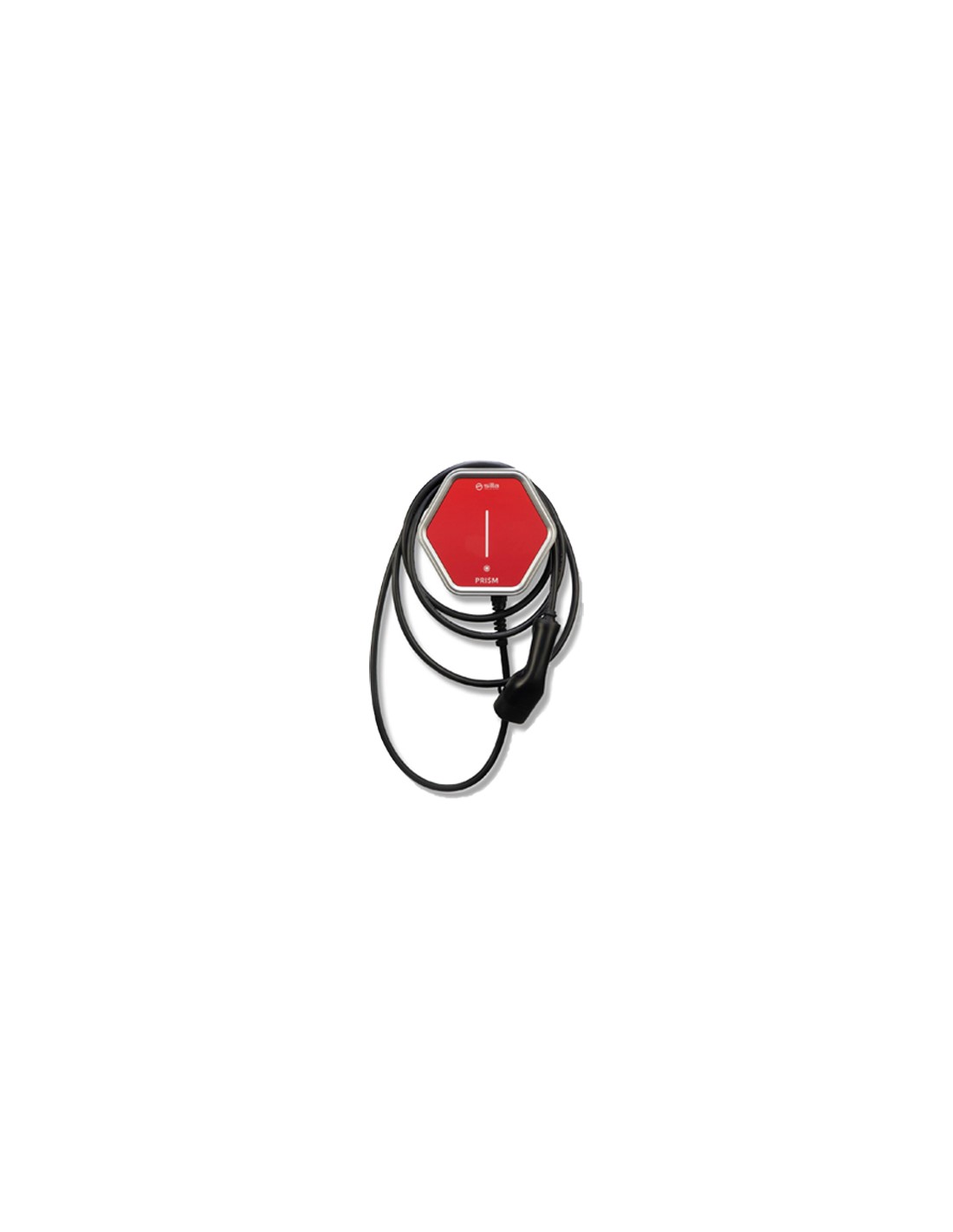

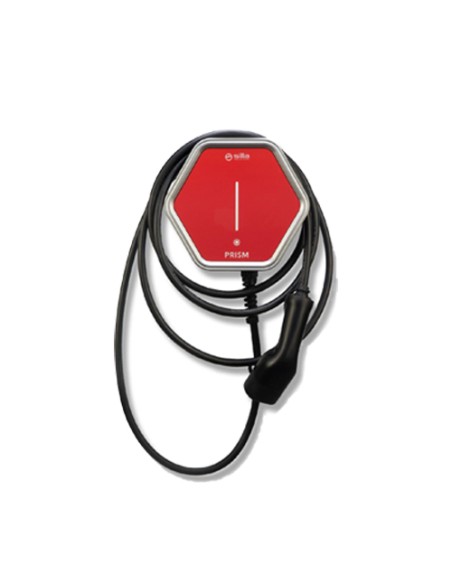

Columna de recarga 7.4kW monofásica Prism Basic
Features
Prism Basic, el modelo básico, incluye de serie balanceo de carga y protección RCD, todo lo necesario para cargar tu coche sin renunciar a la seguridad. Puedes actualizarlo a Prism Solar en cualquier momento comprando la Smart Cover.
Para obtener más detalles, descargue los siguientes documentos:
- Datasheet: [Download]
Características técnicas:
| ELECTRICAL SPECIFICATIONS | |
| Code with 5 m cable | BCS01320205 |
| Charging connector type | Type 2 |
| Power supply | 230V AC |
| Maximum current | 32A |
| Maximum charging power | 7.4 kW |
| Frequency | 50 Hz - 60 Hz |
| Electrical safety class | Class I |
| MECHANICAL SPECIFICATIONS | |
| Current sensor up to 100A | Yes |
| Material | ABS Bayblend |
| Protection rating | IP65 |
| Certifications | CE, IEC 61851, IEC 62196-2 |
| Integrated cable holder | Yes |
| Dimensions (without cable) | 263 × 238 × 88 mm |
| Weight | 4 kg (with 5 m cable) |
| Warranty | 2 Years |
- Tipología
- Monofásico
- Poder
- 7.4kW
8370000071624
