213,28 € Vat excl.

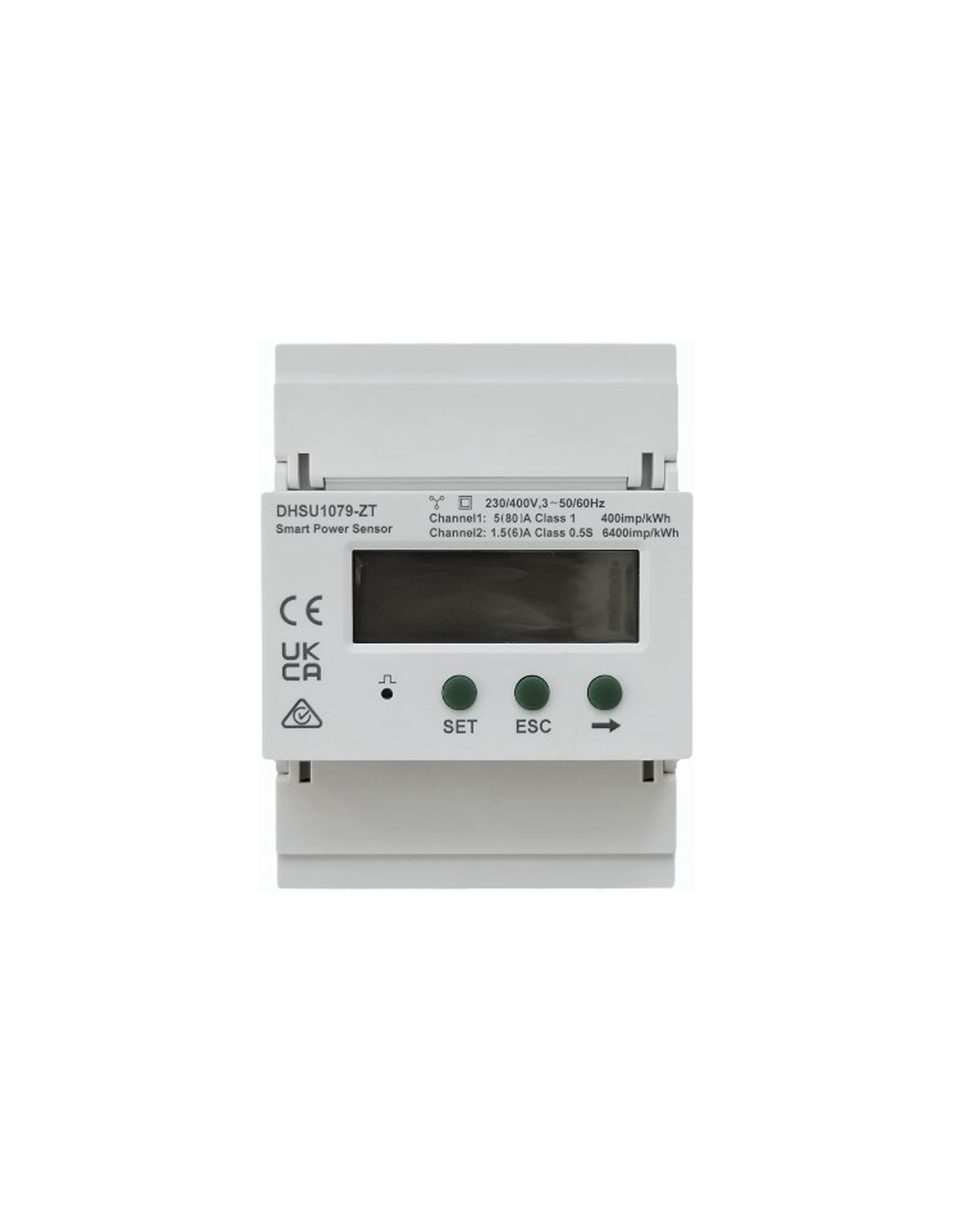

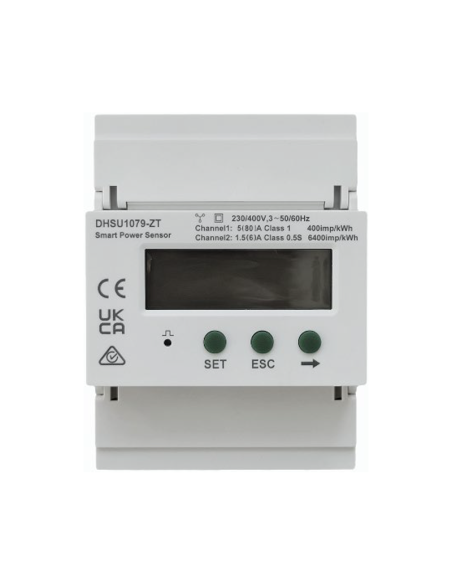

Huawei DHSU1079-ZT Energiezähler für dreiphasige Wechselrichter der Huawei-Reihe.
| Power Supply | |
| Power grid type | 3P3W/3P4W |
| Input voltage (line voltage) | 230 V AC/400 V AC |
| Power consumption | <1.5W |
| Measurement Range | |
| Line voltage | 90V~1000V |
| Phase voltage | 176VAC~288V AC |
| Current | 0~80A |
| Measurement Accuracy | |
| Voltage / Current | ±0.5 % |
| Power / Energy | ±1 % |
| Frequency | ±0.01 Hz |
| Communication | |
| Interface | RS485 |
| Baud rate | 4800/9600/19200/115200 |
| Communication protocol | Modbus-RTU |
| Environment | |
| Operating temperature range | –25°C to +60°C |
| Storage temperature range | –40°C to +85°C |
| Operating humidity | 5% RH–95% RH (non-condensing) |
| General Data | |
| Dimension (H x W x D) | 100 x 72 x 80 mm |
| Mounting type | DIN35 Rail |
| Weight (including cables) | < 0.5 kg |
| Accessories | RS485 Cable 10 m |
