Three-phase storage system 20kW inverter Solis FlexHome 30kWh HV lithium battery

Pack

Three-phase storage system 20kW inverter Solis FlexHome 30kWh HV lithium battery

Name: Three-phase storage system 20kW inverter Solis FlexHome 30kWh HV lithium battery
Brand: Solis
SKU: KSA-20EH3P-SOLIS-FLEXHOME-30
Price: 9759.78 EUR
Availability: InStock

Reference KSA-20EH3P-SOLIS-FLEXHOME-30

Last items in stock

€9,759.78

VAT included 10 %

€8,872.53 Vat excl.

Storage system with Solis inverter for grid connection with storage in Solis Lithium battery.

This pack contains

Three-phase hybrid inverter 20kW Solis S6 4 MPPT DC switch photovoltaic solar

€2,516.28

Solis FlexHome HV lithium battery 5kWh photovoltaic storage

€1,103.85

Control Box for Solis FlexHome 5kWh HV Lithium Battery Module

€620.40

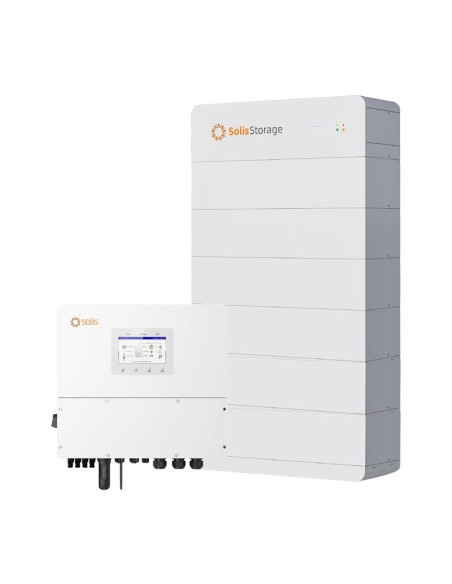

Three-phase storage system 20kW inverter Solis FlexHome 30kWh HV lithium battery

With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to the power supply of the loads and the storage of energy in the SOLIS lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

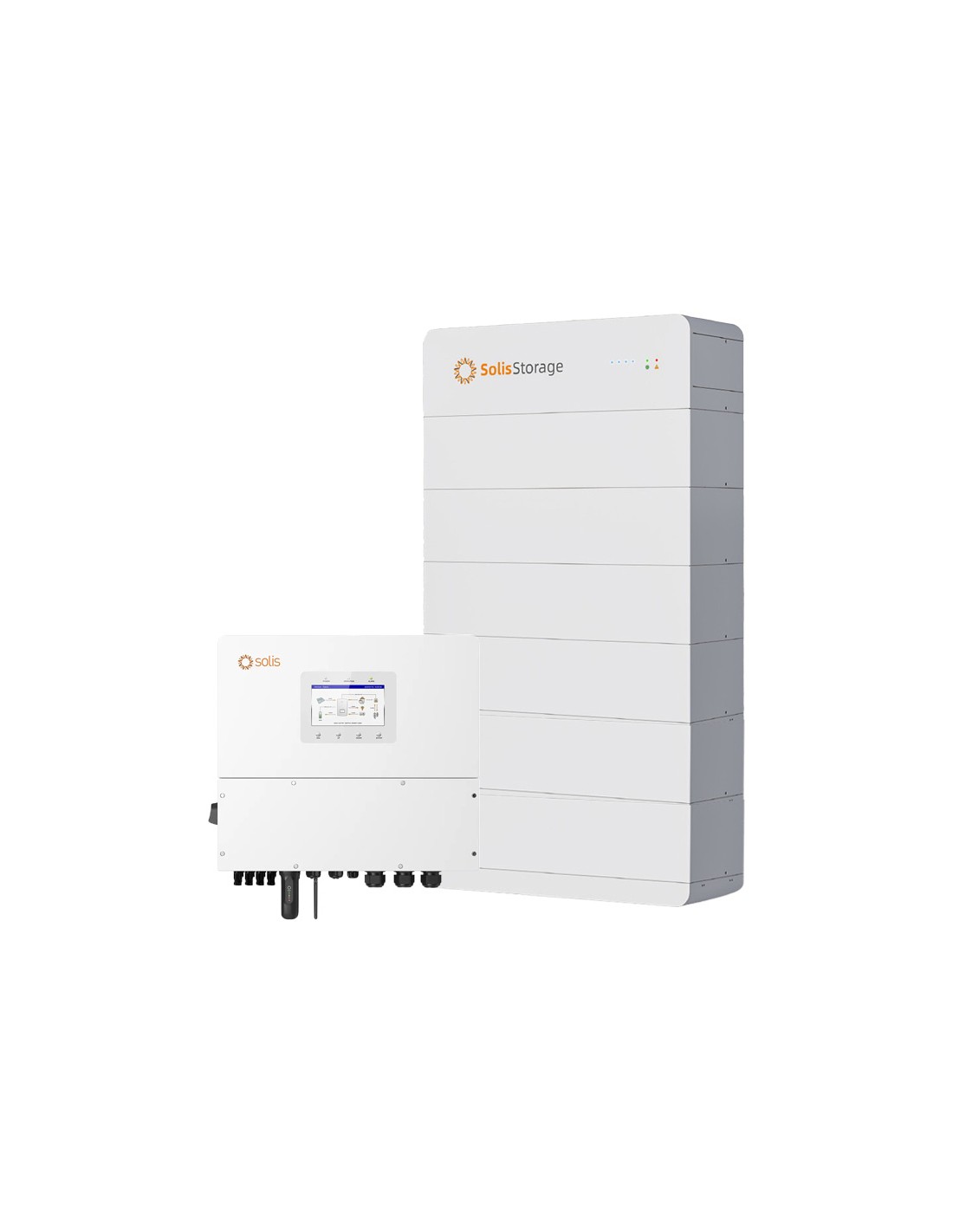

COMPONENTS OF THE KIT


1	Inverter Hybrid	Inverter Hybrid Three phase 20kW Photovoltaic System with Lithium storage	Download

6	Lithium Battery	Lithium Battery 5kWh Solis FlexHome	Download

1	Control Box	Control Box for Solis FlexHome 5kWh HV Lithium Battery Module	Download

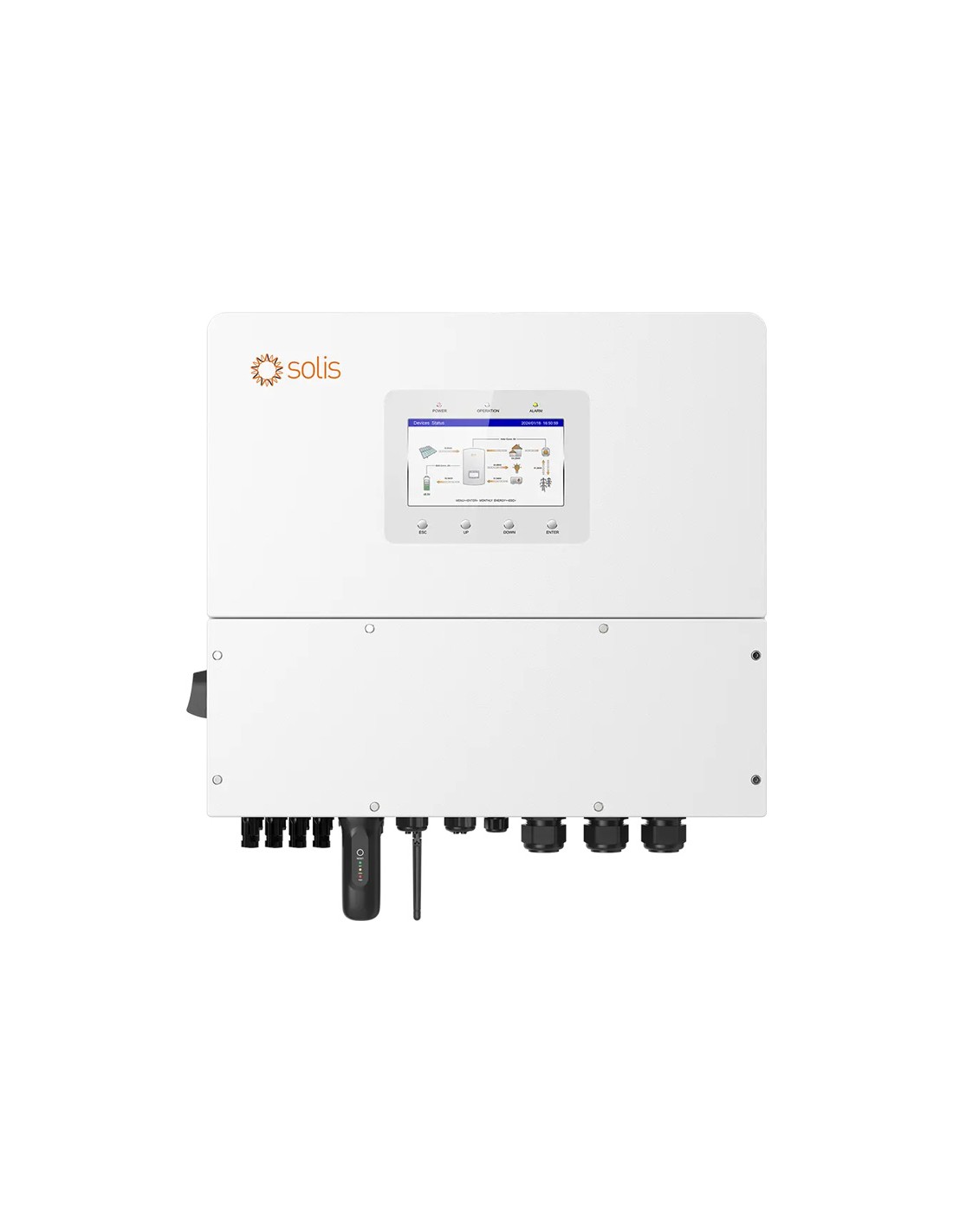

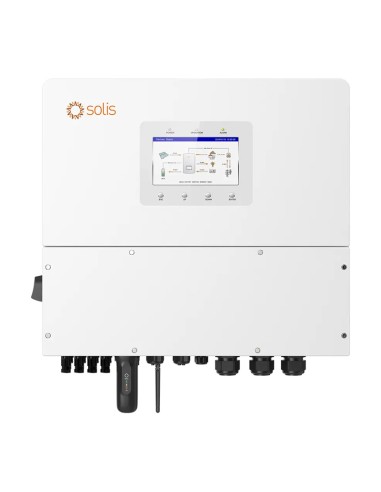

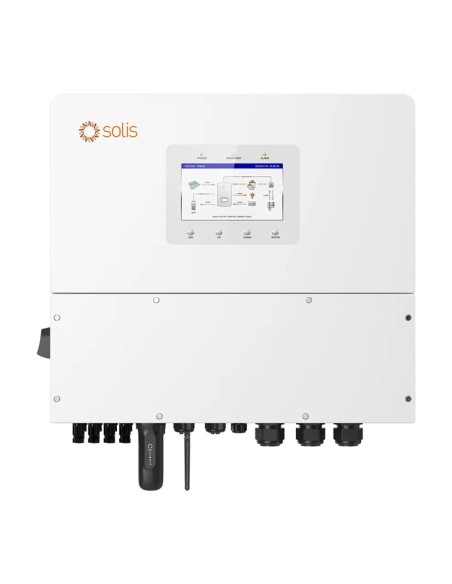

Main features of the inverter:

Compatible with SG heat pumps;
Supports unbalanced and half-wave loads on both the mains and backup ports;
Supports dual backup ports for intelligent control of critical and non-critical loads;
Compatible with generator to extend the backup time in the event of a grid failure;
Supports a maximum input current of 20A, suitable for all high-power PV modules of any brand;
Supports AC voltage detection of the mains and generator output to avoid damage to generators caused by reverse current from the mains.

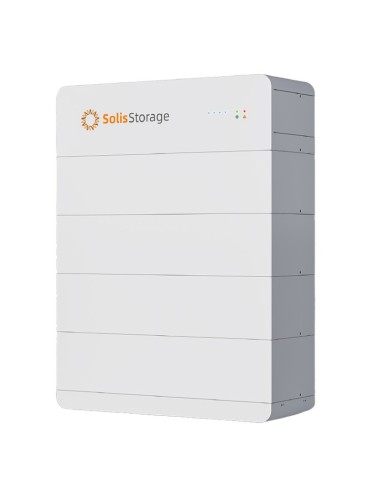

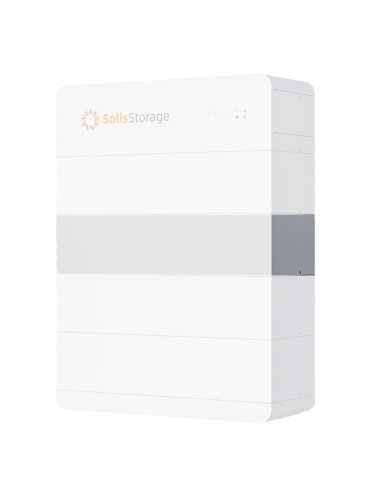

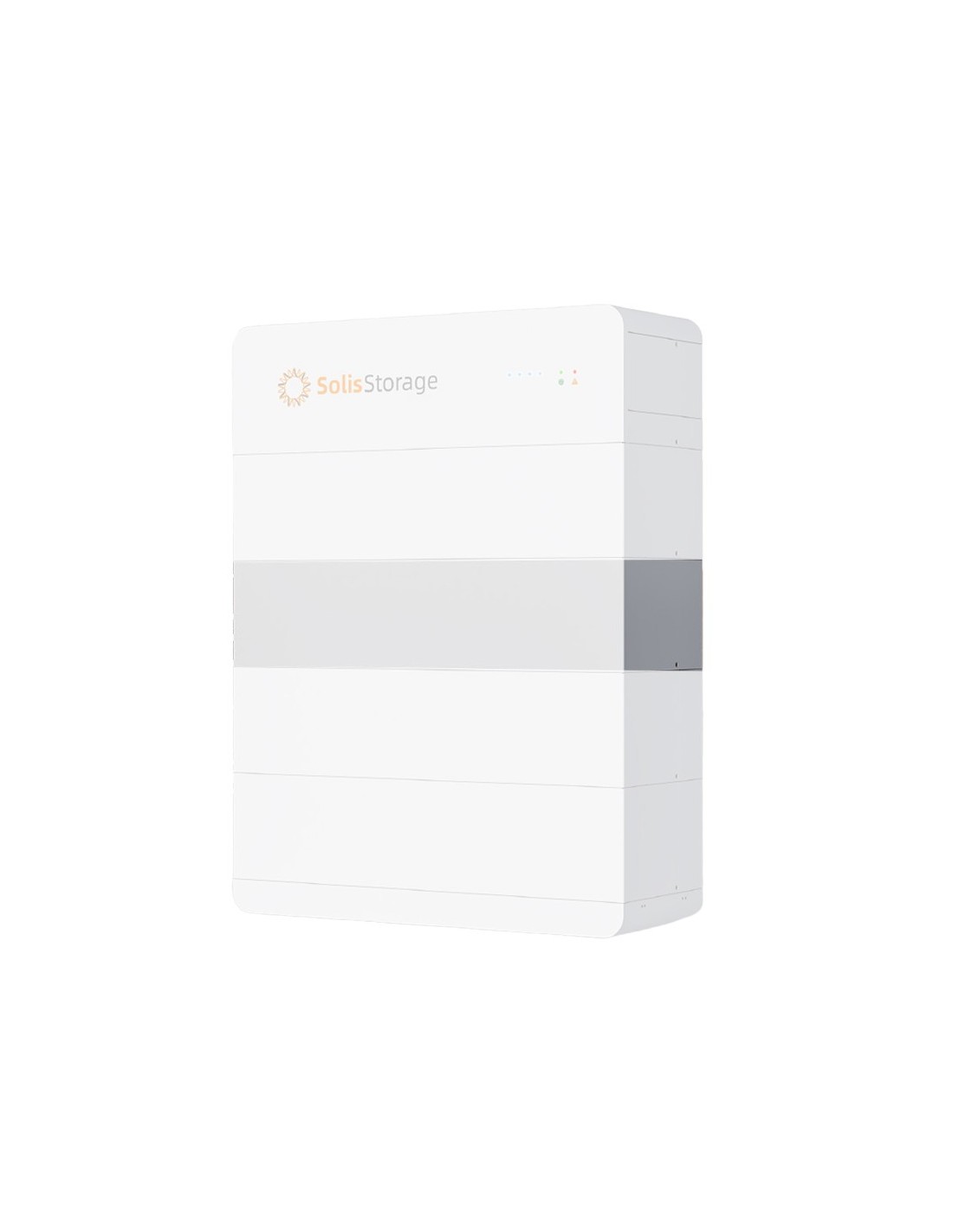

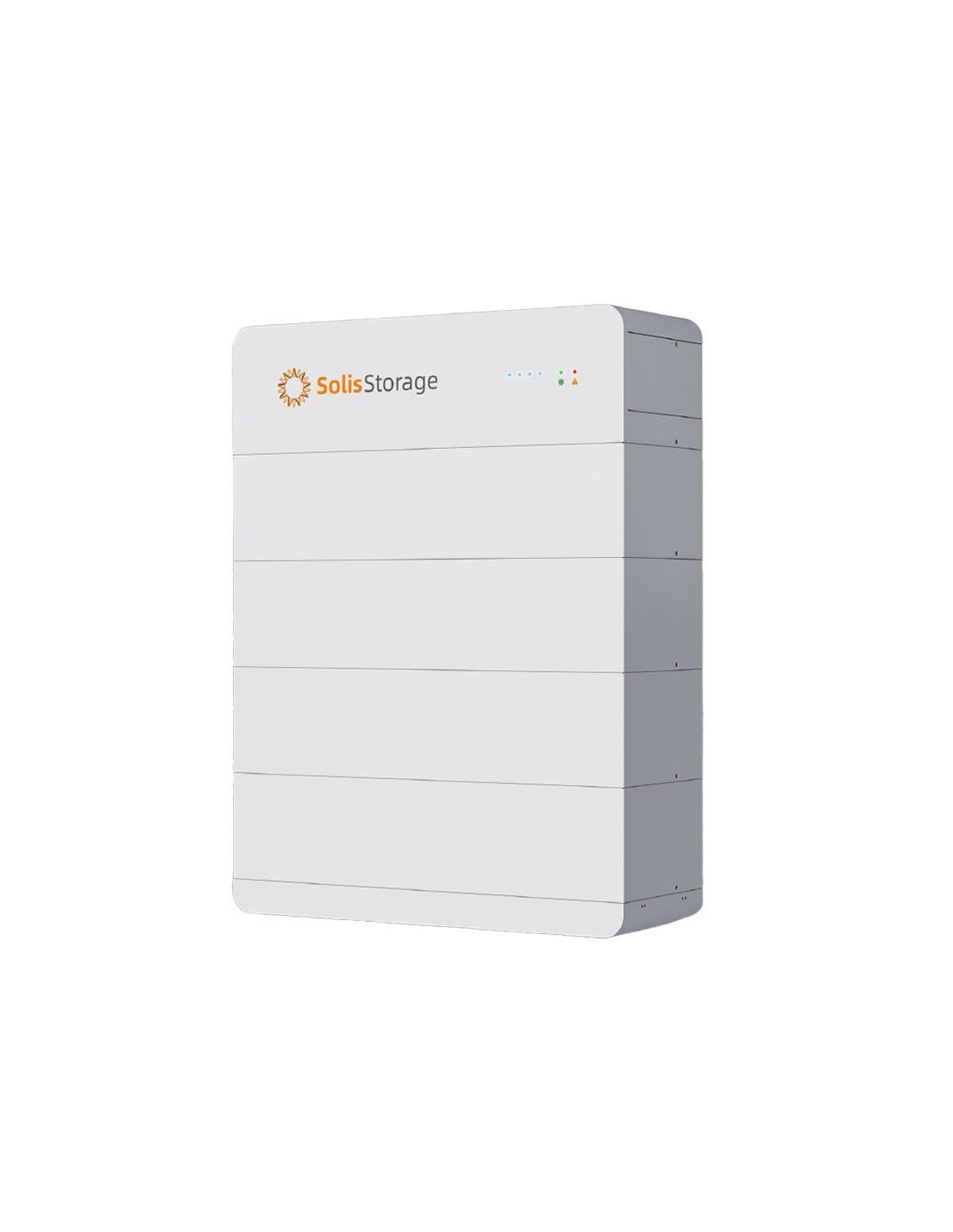

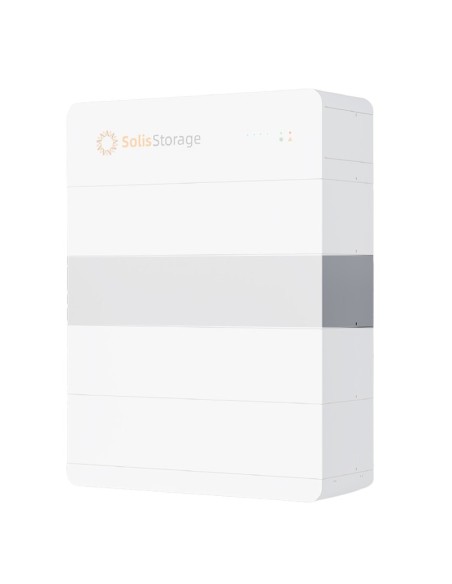

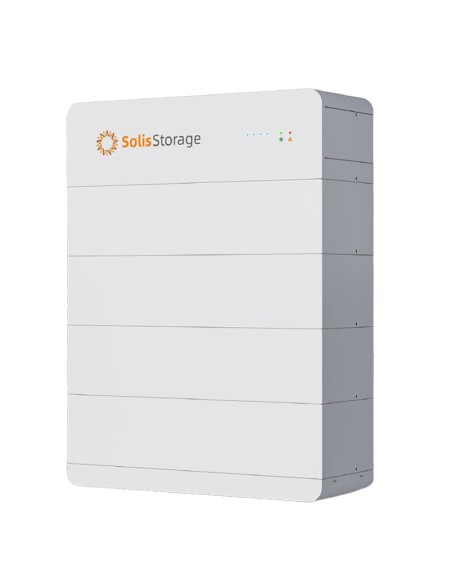

Main features Battery:

Technology: LiFePO₄ battery (Lithium Iron Phosphate).
Nominal capacity: 15 kWh (3 modules of 5 kWh).
Operating voltage: 134.4–172.8 V.
Cell capacity: 100 Ah.
Recommended charge/discharge current: 50 A (maximum continuous 50 A).
Depth of Discharge (DoD): up to 100%.
Lifespan: over 6,000 charge/discharge cycles (service life up to 10 years).
Protection: IP66 rating with CAN/RS485 communication and natural cooling.
Dimensions and weight: 800 × 860 × 285 mm, 170 kg.
Installation: floor-mounted (default) or wall-mounted, expandable up to 4 systems in parallel (160 kWh total).
