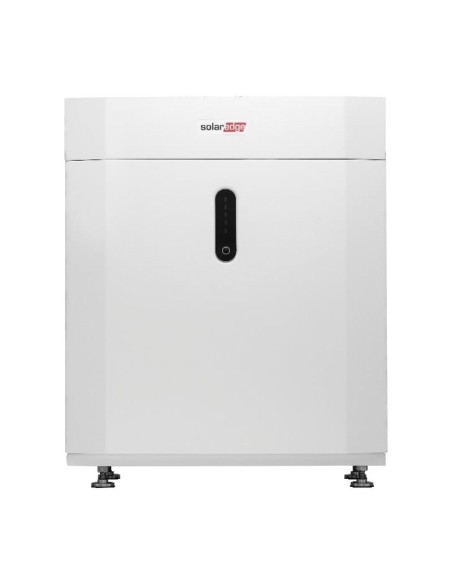

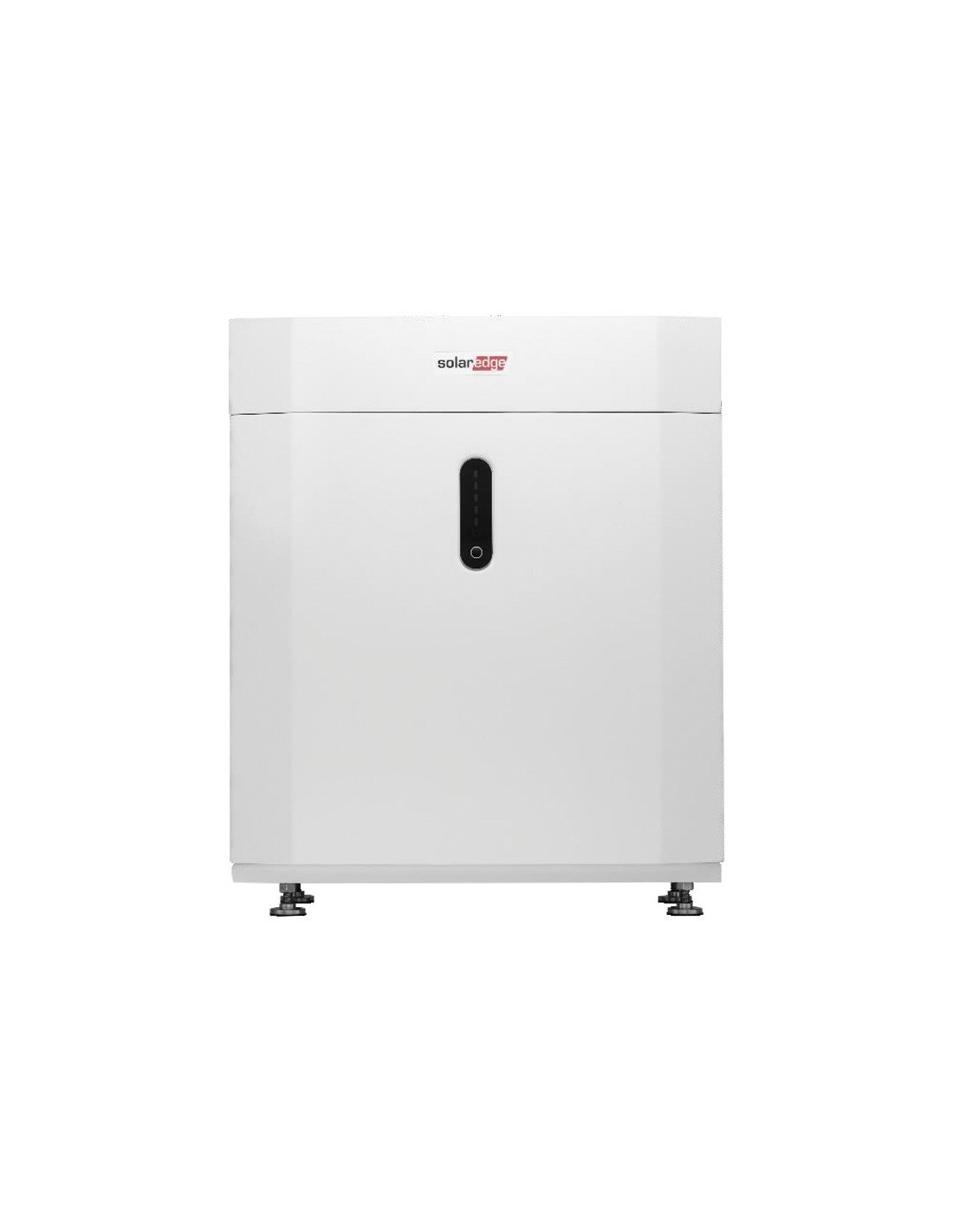

SolarEdge Home Battery 4.6kWh low voltage lithium battery photovoltaic storage
BAT-05K48M0B-02
Last items in stock
€2,063.92
VAT included
10 %
€1,876.29 Vat excl.
The SolarEdge Home battery module is a low-voltage product designed for residential energy storage scenarios, supporting up to 5 units in parallel per inverter, with an energy coverage of 4.6kWh to 23kWh.
SolarEdge Home Battery 4.6kWh low voltage lithium battery photovoltaic storage
Main Features
The SolarEdge Home battery module is a low-voltage product designed for residential energy storage scenarios, supporting up to 5 units in parallel per inverter, with an energy coverage of 4.6kWh to 23kWh.
- DC-coupled battery with full system performance, enabling more energy storage for use in grid-connected applications and backup power;
- Seamlessly integrates with the SolarEdge Home and SolarEdge commercial ecosystems, offering a single point of contact for warranty, support, and training, simplifying logistics and operations;
- Includes enhanced safety features for battery protection;
- Scalable solution that allows stacking multiple battery modules per inverter to achieve high capacities (up to 23 kWh);
- Solar power, storage, EV charging, and smart devices, all monitored and managed from a single app to optimize production, consumption, and backup power;
- Simple plug and play installation, with automatic configuration via SetApp.
For more details, download the following documents:
- Datasheet: [Download]
Technical specifications
| BAT-05K48 | |
| Battery type | Lithium Iron Phosphate |
| Usable energy | 4.6kWh |
| Peak charging and discharging efficiency | > 95.4% |
| Warranty | 10 years |
| Voltage range | 44.8 – 56.5 VDC |
| Communication interfaces | RS485 between modules, CAN bus to the inverter |
| Modules per inverter | Up to 5 connected in parallel |
| Noise level (at 1 m distance) | < 25 dBA |
| Certifications | IEC62619, UN38.3, UL9540A, UN38.3, IEC62619, IEC63056, IEC62040-1, VDE-AR-E 2510-50, IEC61000-6-1, IEC61000-6-2, IEC61000-6-3, IEC61000-6-4, 61000-3-12 |
| Dimensions (W x H x D) | 540 x 500 x 240 mm |
| Weight | 54.7 kg |
| Mounting | Floor stand and wall mount |
| Operating temperature (discharged/charged) | -10 to +50 °C |
| Storage temperature | -10 to +45 °C |
| Ingress protection | IP65 / NEMA 3R - indoor and outdoor (protection against water and dust) |
| Cooling | Natural convection |
- Typology
- Lithium
- Voltage (V)
- 48V
- Accumulation capacity
- 4.6kWh
