Solar Charge Controller REGDUO 10A PWM 12/24V for two Batteries Camper Boat
EPIPDB-COM10
In Stock
€11.64
VAT included
10 %
€10.58 Vat excl.
The EP Solar charge controllers are ideal for connecting solar panels for small installations such as votive kit, log cabin, lighting, home, irrigation, electric gates, bridges, radio, etc...
100% secure payments

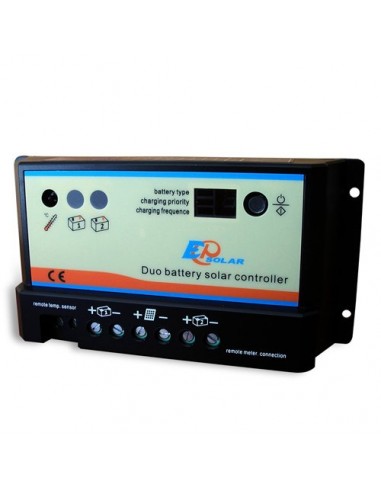

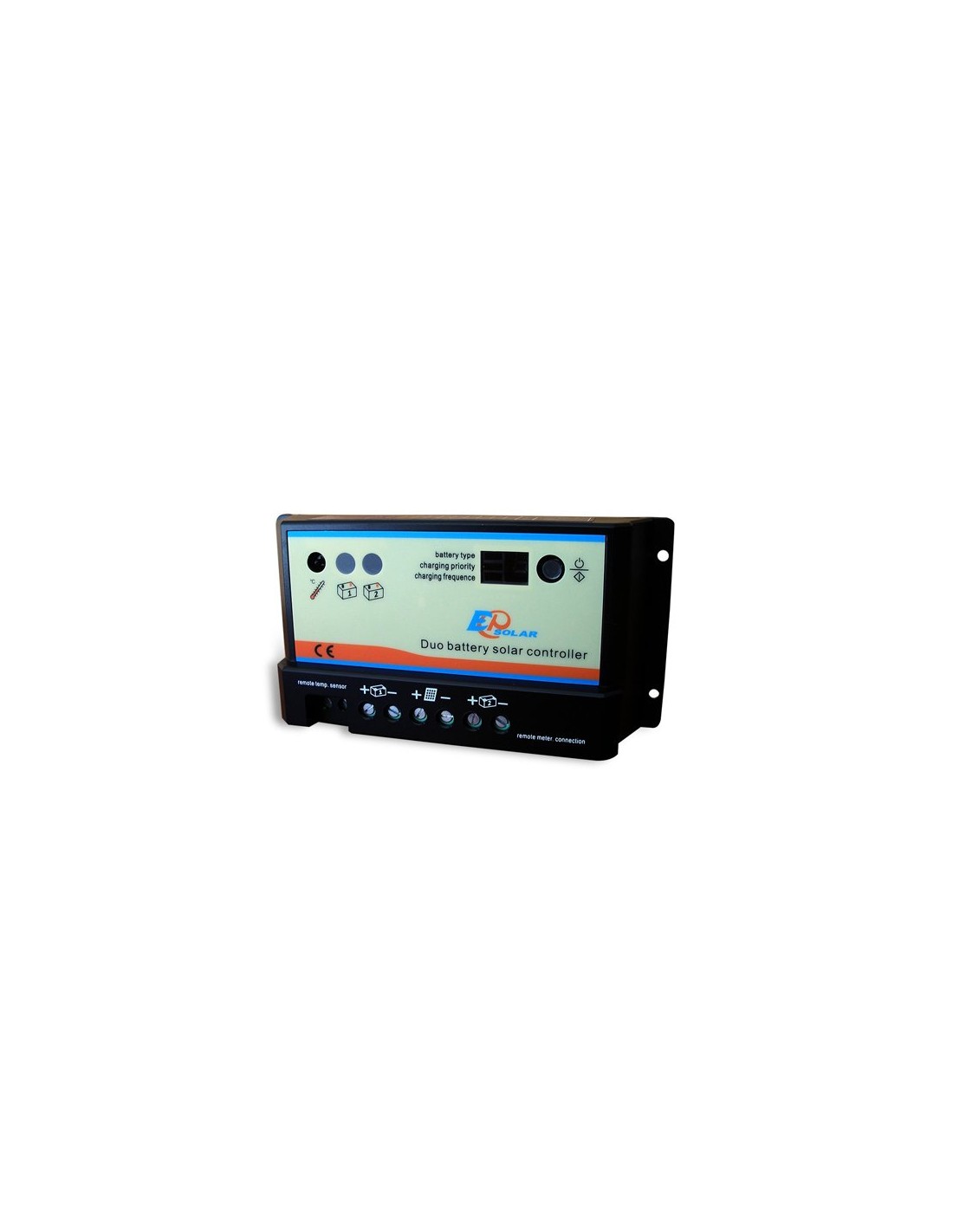

Charge Controller Ep Solar REGDUO
10A 12/24V EP Series
The EP Solar charge controllers are ideal for connecting solar panels for small installations such as votive kit, log cabin, lighting, home, irrigation, electric gates, bridges, radio, etc...
The EP Solar charge controllers adopt the most advanced digital technology and automatically work completely.
The charge controllers REGDUO are specific for campers, caravans, boats, buses and other moving vehicles. It can charge two batteries simultaneously (typically the engine battery and battery services). This feature eliminates the need to use an external paralleling to adjust the level of charge of the two batteries.
In addition to this function also plays a task of maintaining the battery is preventing the overload that underdischarging. The EP Solar charge controllers are also equipped with LED lights that are meant to show the status of the controller and accessories related to it (panels and accumulators).
The charge controllers REGDUO are specific for campers, caravans, boats, buses and other moving vehicles. It can charge two batteries simultaneously (typically the engine battery and battery services). This feature eliminates the need to use an external paralleling to adjust the level of charge of the two batteries.
In addition to this function also plays a task of maintaining the battery is preventing the overload that underdischarging. The EP Solar charge controllers are also equipped with LED lights that are meant to show the status of the controller and accessories related to it (panels and accumulators).
Features
- low cost The process of industrial production at high quantity allowed to maintain the very low cost of this regulator, all to the advantage of the customer.
- high Reliability All components used are of high quality. The controllers are tested directly by the manufacturer, resulting in a badger fault very low.
- electronic protection This controller has a system of protection which does not require replacement of fuses. Any error in installation does not damage the regulator.
- Tropicalization The electronics are protected with a dust-proof covering. In this way are minimized damage from moisture and insects.
- Ease of use This controller is fully automatic and does not require calibration or settings. I simply need to plug it in and it will carry out its work.
Connection Diagram
Technical Specifications
- Model EPIPDB-COM10
- System voltage 12/24V
- Max. Voltage of the battery 8-15V(12V), 8-30V(24V)
- Current battery charge 10A
- Own consumption < 6mA
- Operating Temperature -35°C / + 55°C
- Humidity < 95% (NC)
- Protection IP30
- Cable section 4 mm2
Dimensions and Weight
| 7.6 cm |  |
3.7 cm |
| 15.3 cm |
width 15.3 cm x height 7.6 cm x thickness 3.7 cm
weight: 0.23 Kg
assistance
For assistance with configuration and installations call
0039 0882 22 82 47
or write to
[email protected]
- Product Code
- EPIPDB-COM10
- Technology (MPPT - PWM)
- PWM
- Nominal system voltage (VDC)
- 12 / 24 VDC Auto work
- Max. battery voltage
- 8-15V 12V - 8-30V 24V
- Rated Battery Current
- 10A
- Max. solar input voltage
- 30V 12V - 55V 24V
- Max. PV input power
- 120W 12V - 270W 24V
- Terminal
- 4mm²
- Working temperature
- -35°C +55°C
- Humidity
- 10% - 90% NC
- Overall dimension
- 153 x 76 x 37 mm
- Net weight
- 0.24Kg
- Protection grade
- IP30
