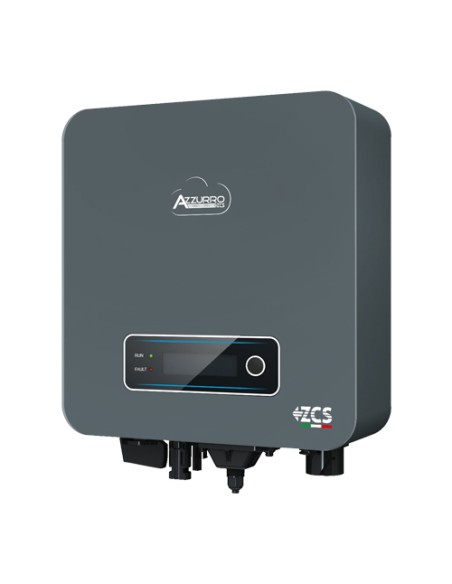

Single phase string inverter 1.1kW ZCS Azzurro ZZ1 TL MPPT with disconnector

Single phase string inverter 1.1kW ZCS Azzurro ZZ1 TL MPPT with disconnector

Name: Single phase string inverter 1.1kW ZCS Azzurro ZZ1 TL MPPT with disconnector
Brand: ZCS Azzurro
SKU: ZZ1-1100TL-V3-S
Price: 350.94 EUR
Availability: InStock

Reference ZZ1-1100TL-V3-S

Last items in stock

€350.94

VAT included 10 %

€319.04 Vat excl.

ZCS AZZURRO, THE INVERTER THAT LOOKS AT THE FUTURE

Azzurro is the latest generation inverter that combines and integrates ZCS “IT” and “smart” intelligence with the most advanced electronic technology to create a new concept of photovoltaic inverters.

Azzurro – single-phase string inverter 1100TL-V3-S

The ZCS Azzurro single-phase inverters are the ideal solution for small photovoltaic systems in residential or commercial buildings.

The 1kW inverter is characterized by its small size, which makes it handy and easy to install. Thanks to the wide input range, it is simple to configure and adapts to every type of need both on new systems and in retrofit on existing systems.

The graphic or alphanumeric display (depending on the model) allows you to consult the inverter data, while Wi-Fi connectivity allows remote monitoring anytime and anywhere.

Features

Maximum performance 97.5%;
Single MPPT channel;
Fast and safe installation with all required parts included;
Ultra compact;
Wide input operating range from 50V to 550V.

For more details, download the following documents:

User Manual inverter: [Download]
Datasheet inverter: [Download]

Technical features

C input data (photovoltaic)
Maximum DC Power	1210W
No. of independent MPPTs / No. of strings per MPPT	1/1
Maximum DC input voltage	500V
Start-up voltage	70V
Rated Input voltage	360V
MPPT DC voltage range	50V-500V
DC voltage range at full load	110V-450V
Maximum input current for each MPPT	12A
Maximum absolute current for each MPPT	15A
AC Output data
Rated AC power	1100W
Maximum AC Power	1100VA
Maximum AC current	5.3A
Connection type/Rated voltage	Single-phase L/N/PE / 220V, 230V, 240V
Efficiency
Maximum efficiency	97.5%
MPPT efficiency	>99.9%
Consumption at night	<1W
Standard
EMC	EN 61000-6-1/3, EN 61000-3-2/3/11/12
Safety standard	IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC 62109-1/2
Communication
Communication interfaces	Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB
Additional inputs or connections	Input for current sensor connection
General information
Environmental protection class	IP65
Noise level	< 25dB @ 1m
Weight	5.5Kg
Cooling	Natural convection
Dimensions (H x L x D)	303 x 260 x 118 mm
Display	LCD
