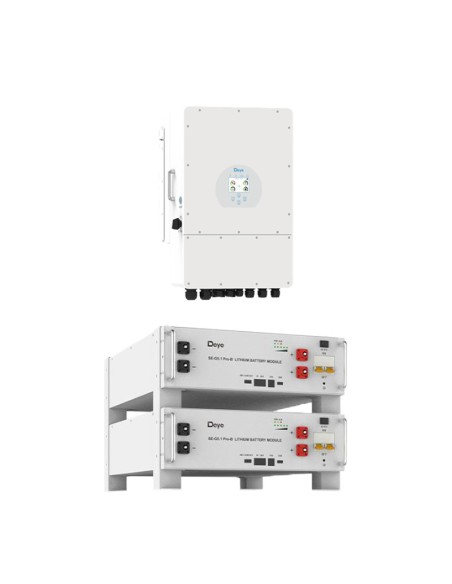

Three-phase storage system 12kW inverter DEYE lithium battery SE-G5.1 Pro-B 10.24kWh

With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Deye storage system will allow you to maximize the returns of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to powering the loads and storing energy in the lithium battery DEYE compared to online sales. In this way you can use the previously stored energy even when the photovoltaic system is not producing, maximizing domestic self-consumption.

5 YEAR WARRANTY FOR DEYE INVERTER

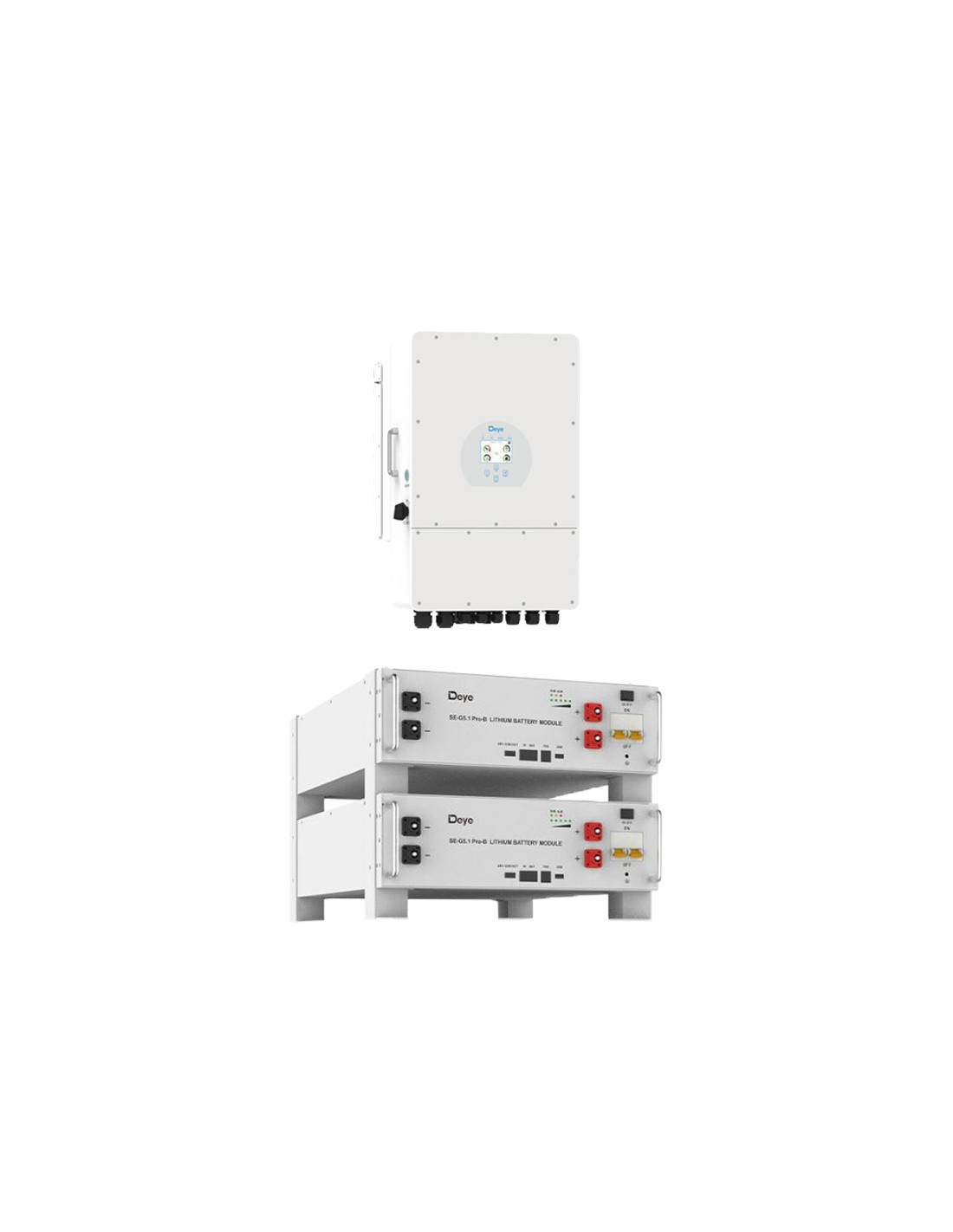

COMPONENTS OF THE KIT

	1	Inverter Hybrid	12kW three-phase hybrid inverter for photovoltaic system with lithium storage	Download
	2	Lithium Battery	Deye SE-G5.1 Pro-B 5.12kWh lithium battery	Download

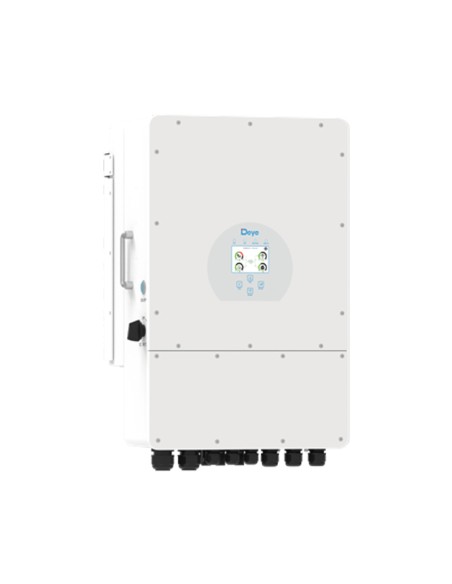

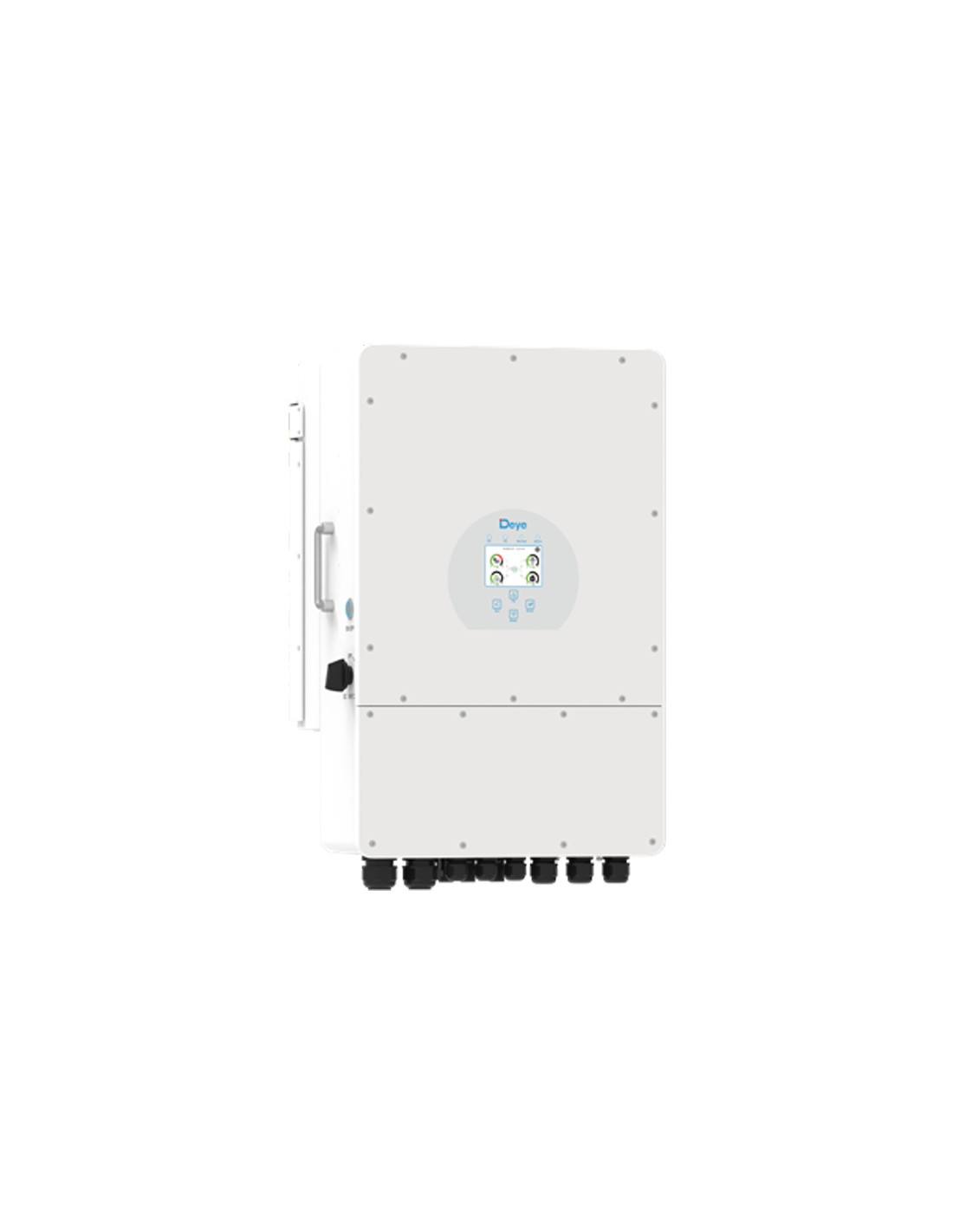

Main features of the inverter:

• 100% unbalanced output for each phase;
• Maximum output up to 50% of nominal power;
• AC torque for retrofit;
• Maximum 10 units parallelable for on-grid and off-grid systems;
• Supports multiple batteries in parallel;
• Maximum charge/discharge current of 240A;
• Low voltage battery of 48V;
• 6 time periods for battery charge/discharge;
• Supports energy storage from diesel generator.

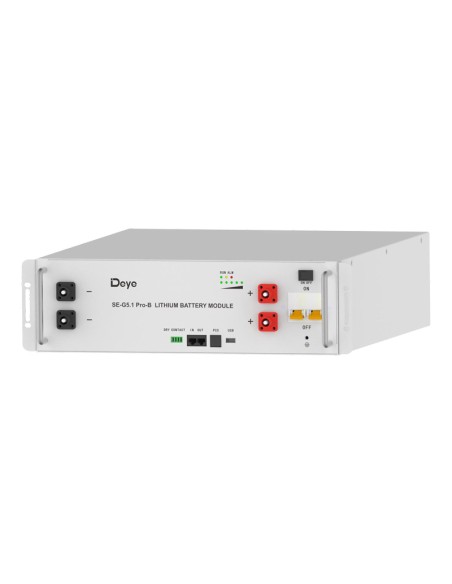

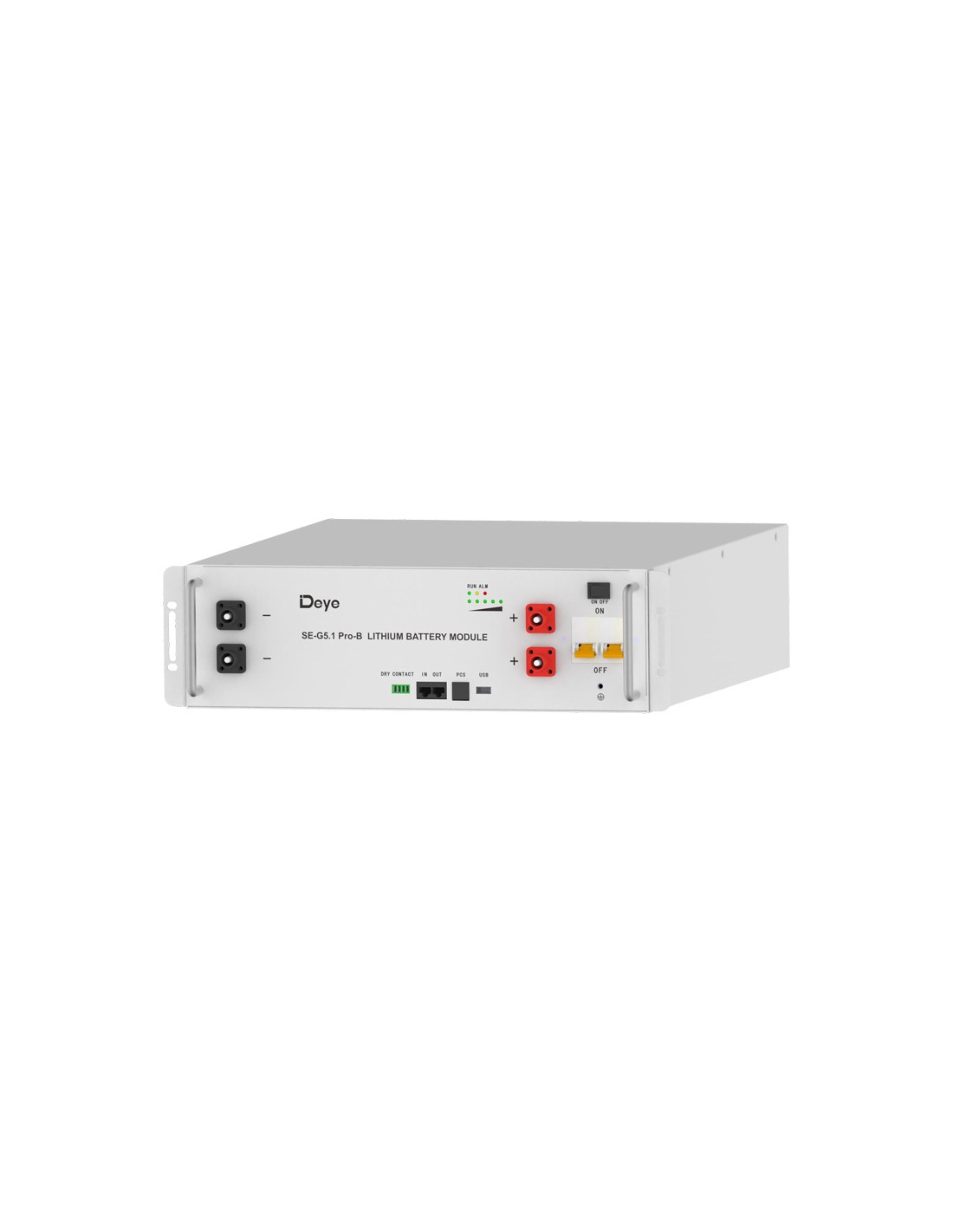

• Safer: Our cobalt-free LFP battery offers greater safety and a long lifespan, with high efficiency and power density. The intelligent Battery Management System (BMS) provides comprehensive protection for your peace of mind;
• Reliable: The SE-G5.1 Pro-B supports high discharge power and operates in a wide temperature range of -20°C to 55°C. With an IP20 rating and natural cooling, this battery is built to last;
• Flexible: The modular design allows for easy expansion, with up to 64 units in parallel, providing up to 327kWh of storage capacity. This flexibility makes it ideal for various applications and power needs;
• Convenient: The battery modules feature automatic networking for easy maintenance and support remote monitoring and firmware updates via USB drive, ensuring a hassle-free experience;
• Eco-friendly: We use environmentally friendly materials, ensuring the entire module is non-toxic and pollution-free, promoting a greener future;
• Three Mounting Methods: With a standard 19-inch design, the SE-G5.1 Pro-B supports rackmount, wallmount and floormount, saving valuable installation space and adapting to your specific needs.
