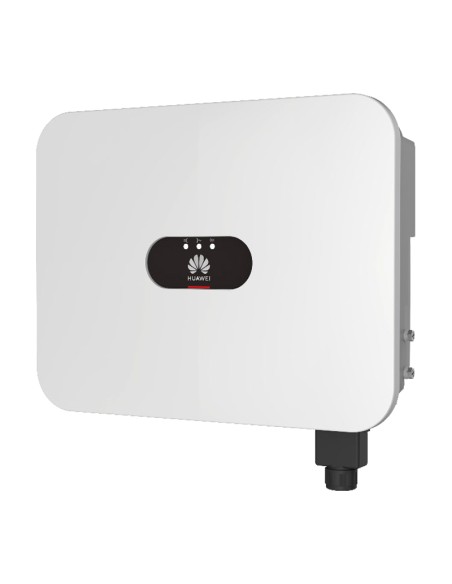

Inversor híbrido monofásico 4kW Huawei SUN2000-4KTL-LB0 solar fotovoltaico
SUN2000-4KTL-LB0
922,06 €
Impuestos incluidos
10 %
838,24 € Vat excl.
- Seguridad Activa: Protección activa contra los arcos;
- Mayor Rendimiento: Hasta un 30% más de energía con el optimizador;
- BatteryReady: Interfaz de batería Plug&Play.
Inversor híbrido monofásico 4kW Huawei SUN2000-4KTL-LB0
Features
- Seguridad Activa: Protección activa contra los arcos;
- Mayor Rendimiento: Hasta un 30% más de energía con el optimizador;
- BatteryReady: Interfaz de batería Plug&Play.
Para obtener más detalles, descargue los siguientes documentos:
- Datasheet: [Download]
Características técnicas
| Input | |
| Recommended max PV power | 6,000 Wp |
| Maximum input voltage | 600 V |
| Maximum input current per MPPT | 16 A |
| Maximum short-circuit current | 20 A |
| Startup voltage | 50 V |
| MPPT operating voltage range | 40~560V |
| Nominal input voltage | 360 V |
| Max number of inputs per MPPT | 2 |
| Number of MPPTs | 1 |
| Input (Battery DC) | |
| Compatible batteries | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Operating voltage range | 350~560Vdc |
| Maximum operating current | 16.5A |
| Maximum charge power | 6,000 W |
| Maximum discharge power | 4,400 W |
| Output (OnGrid) | |
| Grid connection | Single-phase |
| Nominal output power | 4,000 W |
| Maximum apparent power | 4,440VA |
| Nominal output voltage | 220Vac/230Vac/240Vac |
| Grid frequency rating | 50Hz/60 Hz |
| Maximum output current | 20A |
| Backup power output | Yes (viaSmartGuard63AS0) |
| Features & Protections | |
| Anti-islanding protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation monitoring | Yes |
| DC overvoltage protection | Yes, compliant with TYPE II protection class according to EN/IEC61643-11 |
| AC overvoltage protection | Yes, compliant with TYPE II protection class according to EN/IEC61643-11 |
| Residual current monitoring | Yes |
| AC overcurrent protection | Yes |
| AC short-circuit protection | Yes |
| AC overvoltage protection | Yes |
| Arc fault protection | Yes |
| Battery charging from the grid | Yes |
| Standard compliance | |
| Certifications | EN/IEC 62109-1,EN/IEC62109-2 |
| Grid connection standards | G98,G99,G100,EN50549-1,CEI0-21,VDE-AR-N-4105,C10/11, P140, UTEC15-712, TOR Erzeuger, IEC61727, IEC62116 |
| Compatible Optimizers | |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P |
| Display | LED indicators, built-in WLAN + FusionSolar App |
| Communication | RS485, WLAN via built-in WLAN module, Ethernet via Smart Dongle-WLAN FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA |
| Operating temperature range | -25~+60°C |
| Cooling | Natural convection |
| Protection rating | IP66 |
| Dimensions (W x H x D) | 425 x 376.5 x 150 mm |
| Weight | 15kg |
- Código de Producto
- SUN2000-4KTL-LB0
- MPPT number
- 2
- Tipología
- Monofásico
- Potencia del inversor
- 4.0kW
8370000058304
